LIOGO Tutorial

[This is preliminary documentation and subject to change]

How it works ?

Liogo is a Logo compiler for .NET. So when you launch the Liogo compiler (with the LIOGOC command line or with LIOGOI) on a Logo script, Liogo:

Parse and check syntax of the Logo source file,
Build a language independent structure using .NET CODEDOM API,
Send this CODEDOM structure to the .NET C# Compiler,
Run the .NET Compiler to generate a .NET Intermediate Language IL (p-code) DLL or EXE.

Finally, you just have to call your EXE to run your Logo code. Note that the first time your EXE is launch, the .NET Runtime automatically call its Just-in-time compiler to compile the IL p-code to processor native assembly language.

May be you think that Liogo is a Logo to C# translator ? In a sense you're right but remind you that at the end of the process, Logo code is really translated to the processor machine language !

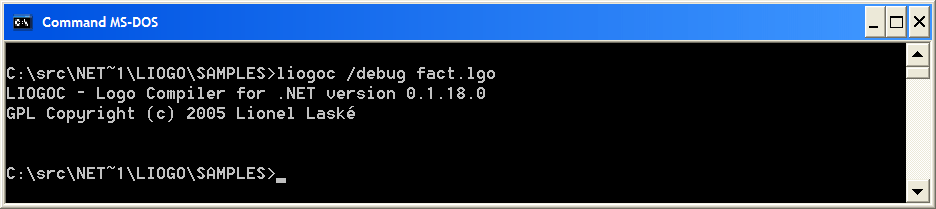

For debugging reason, Liogo let you see a part of the building process. For example, build again our first sample "fact.lgo" with the "/debug" option:

;-- Compute Factorial
to fact :n
	if equal? :n 1
		[output 1]
	output :n * fact :n - 1
end

print fact 1
print fact 4

Then open in your favorite editor the file named "fact.exe.cs". This file is the C# equivalent to the Liogo CODEDOM structure:

//
//   Source generated by LIOGO compiler on 18/06/2006 08:32:42
//
namespace LIOGO.Framework {
    using System;
    using System.Reflection;
    using LIOGO.Core;


    [LogoLibrary()]
    public class fact_dlgo {

        static LogoNumber number_1 = new LogoNumber(1);

        static LogoNumber number_4 = new LogoNumber(4);

        [LogoProcedure()]
        public static ILogoValue fact(ILogoValue n) {
            LogoContext.BeginProcedure("fact", n);
            LogoContext.DeclareVar("n", n);
            if (LogoContext.TestIfTrue(BoolLib.equal_q(LogoContext.GetVar("n"), number_1))) {
                return LogoContext.EndProcedure("fact", number_1);
            }
            return LogoContext.EndProcedure("fact", MathLib.product(LogoContext.GetVar("n"), fact_dlgo.fact(MathLib.difference(LogoContext.GetVar("n"), number_1))));
        }

        public static void StartUp() {
            LogoContext.AssertNull(IOLib.print(LogoList.CreateList(fact_dlgo.fact(number_1))));
            LogoContext.AssertNull(IOLib.print(LogoList.CreateList(fact_dlgo.fact(number_4))));
        }

        public static void Main(String[] args) {
            LogoContext.Init();
            LogoContext.Debug = true;
            LogoContext.LoadLibrary("fact.exe", Assembly.GetExecutingAssembly());
            LogoContext.SetVar("args", LogoList.CreateListFromString(args));
            LogoTurtle turtle = new LogoTurtle();
            turtle.Do(new JobDelegate(new JobDelegate.StartUpDelegate(fact_dlgo.StartUp)));
            LogoContext.Run();
            LogoContext.Terminate();
        }
    }
}

In this C# source you find all your Logo statements translated to C#:

"fact" procedure is converted to a C# method,
"print" statements are converted to a single "StartUp" method,
and because, you choosed to generate an EXE file, a main entry point is generated.

More about Liogo internal

If you look more precisely in the C# generated file, here what you can see:

A logo procedure is converted to a C# method with a .NET attribute named "[LogoProcedure()]". This attribute is need by Liogo to find your Logo Procedure in a DLL using .NET Reflection,
Logo values are handled via a .NET interface "ILogoValue", it's the unique entry point for List, Word or Number,
Logo variables are not directly mapped to .NET variables but to a memory hashtable ("GetVar" and "SetVar"), so Liogo could give you the same variable scope than Logo,
Each procedure call include a trace ("BeginProcedure" and "EndProcedure") so you can have a full stack trace in case of runtime error,
All Logo Framework call are done via .NET class: MathLib, BoolLib, IOLib, ...

About dynamic statements

There are two sort of dynamic statements: MAP call (using "named-procedure" template form) and RUN (or MAP call using any other template for than "named-procedure").

To process a MAP call, Liogo use reflection. More precisely, Liogo keep in memory one hashtable for each DLL loaded in the Liogo context. This hastable contains the name of the Logo procedure and the name of the .NET equivalent method. So when you do a MAP, Liogo find easily which .NET method need to be invoke.

To process a RUN call (explicit call using RUN command or implicit call using a variable), Liogo call the Liogo compiler on the new statement, build it to a memory DLL and invoke the "StartUp" method.

Of course there is an overhead to do a dynamic call with Liogo. More dynamic statements you have, less performance you have !

So in the sample above:

direct call to "myproc" is the more performing call,
map call is slightly less performing,
run call have bad performance.

to myproc :l
    output :l
end

print myproc [Hello]             ; direct call
print map "myproc [Hello]        ; call using reflection
print run [myproc [Hello]]       ; call using compiler

If you're interested by performance and Liogo, read more on the technical article here.
